Lil’Spring A2700

Whether it rains or shines the Lil'Spring A2700 double sided livestock watering tank provides fresh water at any time. Resistant to corrosion, the Lil’Spring can provide for 100 head of sheep or goats. It holds up to 6 gallons of water at a time and the smooth edges prevent any unnecessary animal harm.

• 14" drinking height
• Measures 17.5” x 28.75” x 14” (L x W x H)
• Weighs 40 lbs.
• Holds up to 6 gallons
• Capacity: 100 head of sheep or goats
• 3” offset drain for outside use
• Stainless steel anchor bolts and Miraco automatic plastic valve included
• Heat: Optional 110V 250-watt submersible heater
• Attractive design; four color options: Gray, Standard Blue, Black or Hunter Green

Manufacturer's Part Number: A2700

Lil’Spring A2800

Keep a variety of animals hydrated with the Lil'Spring A2800 single sided livestock watering tank. Holds up to 4 gallons of water at a time to accommodate either 30 head of horses or beef cattle. Tough, high-impact resistant Rockite material stands up to livestock abuse.

• 19" drinking height
• Measures 16” x 20” x 19” (L x W x H)
• Weighs 40 lbs.
• Holds up to 4 gallons
• Capacity: 30 head of beef or horses
• 3” offset drain for outside use
• Stainless steel anchor bolts, Miraco automatic plastic valve and 200 psi hose w/shut off valve included
• Heat: Optional 110V 250-watt submersible heater
• Attractive design; four color options: Gray, Standard Blue, Black or Hunter Green

Manufacturer's Part Number: A2800

Lil’Spring A2900

Keep a variety of animals hydrated with the Lil'Spring A2900 double sided livestock watering tank. Holds up to 6 gallons of water at a time to accommodate either 50 head of beef cattle or 25 horses. Tough, high-impact resistant Rockite material stands up to livestock abuse. Removable dome for quick and easy access to the valve area.

• 19" drinking height
• Measures 16.5” x 30.5” x 27” (L x W x H)
• Weighs 48 lbs.
• Holds up to 6 gallons
• Capacity: 50 head of beef or 25 horses
• 3” offset drain for outside use
• Stainless steel anchor bolts, Miraco automatic plastic valve and 200 psi hose w/shut off valve included
• Heat: Optional 110V 250-watt submersible heater
• Attractive design; four color options: Gray, Standard Blue, Black or Hunter Green

Manufacturer's Part Number: A2900

Lil’Spring A3000

Hydrate your livestock with the Lil'Spring A3000 single sided livestock watering tank. This open waterer is resistant to corrosion and can provide for 30 head of beef, 30 horses or 50 sheep. It holds up to 5 gallons of water at a time and the smooth edges prevent any unnecessary animal harm.

• 16" drinking height
• Measures 22” x 24” x 21” (L x W x H)
• Weighs 48 lbs.
• Holds up to 5 gallons
• Capacity: 30 head of beef, 30 horses or 50 sheep
• 3” offset drain for outside use
• Stainless steel anchor bolts and Miraco automatic plastic valve included
• Heat: Optional 110V 250-watt submersible heater
• Attractive design; four color options: Gray, Standard Blue, Black or Hunter Green

Manufacturer's Part Number: A3000

Lil’Spring A3100DS

The Lil'Spring A3100DS double sided livestock watering tank has large panels for easy tool free access to the valve area. This double-sided waterer is resistant to corrosion and has rounded edges to prevent any harm to your animals. It holds up to 8 gallons of water at a time with the capacity to accommodate either 100 head of beef or 50 dairy cattle.

• 22" drinking height
• Measures 22” x 36” x 27” (L x W x H)
• Weighs 75 lbs.
• Holds up to 8 gallons
• Capacity: 100 head of beef or 50 dairy cattle
• 3” offset drain for outside use
• Stainless steel anchor bolts and Miraco automatic plastic valve included
• Heat: Optional 110V 250-watt submersible heater
• Attractive design; four color options: Gray, Standard Blue, Black or Hunter Green

Manufacturer's Part Number: A3100DS

Lil’Spring A3200

The Lil'Spring A3200 livestock watering tank is designed with a heavy-duty polyethylene construction for beef and dairy cattle. It is an open waterer constructed of high impact resistant Rockite to withstand the toughest of conditions. The rounded edges prevent any harm to your animals and it holds up to 25 gallons of water at a time with the capacity to accommodate either 150 head of beef or 75 dairy cattle.

• 24" drinking height
• Measures 48” x 24” x 29” (L x W x H)
• Weighs 98 lbs.
• Holds up to 25 gallons
• Capacity: 150 head of beef or 75 dairy cattle
• 3” offset drain for outside use
• Stainless steel anchor bolts and Miraco automatic plastic valve included
• Heat: Optional 110V 250-watt submersible heater
• Attractive design; four color options: Gray, Standard Blue, Black or Hunter Green

Manufacturer's Part Number: A3200

Lil’Spring A3500

Corrosion resistant, the Lil'Spring A3500 multipurpose livestock watering tank has safely rounded edges to avoid unnecessary animal harm. Access panels are located at both ends of the tank for easy maintenance. The diagonal valve design allows more cattle to drink at one time. Constructed of high impact resistant Rockite to withstand the toughest of conditions. It holds up to 40 gallons of water at a time with the capacity to accommodate either 225 head of beef or 110 dairy cattle.

• 26" drinking height
• Measures 42” x 42” x 26” (L x W x H)
• Weighs 145 lbs.
• Holds up to 40 gallons with a 168” drinking space
• Capacity: 225 head of beef or 110 dairy cattle
• 3” offset drain for outside use
• Stainless steel anchor bolts and Miraco automatic plastic valve included
• Heat: Optional 110V or 220V 500-watt submersible heater
• Attractive design; four color options: Gray, Standard Blue, Black or Hunter Green

Manufacturer's Part Number: A3500

BigSpring A6000

The flat back of the BigSpring A6000 is designed to fit flush with a wall. The water spray attracts new cattle and the removable dome allows for easy access to the valve area. The waterer holds up to 60 gallons of water at a time and has the capacity to accommodate either 250 head of beef or 110 dairy cattle.

• 24" drinking height
• Measures 90” x 33” x 24” (L x W x H)
• Weighs 215 lbs.
• Holds up to 60 gallons
• Capacity: 250 head of beef or 110 dairy cattle
• 3” drain hole with rubber plug for rapid cleaning
• Stainless steel anchor bolts included
• Heat: Optional 110V or 220V 500-watt submersible heater

Manufacturer's Part Number: A6000

BigSpring A6100

Favored by dairies, the BigSpring A6100 has a flat back designed to fit flush with a wall and the curved front allows full access to the drinking space. The rugged Rockite construction stands up to livestock abuse and resists corrosion. The removable dome allows for easy access to the valve area. This waterer holds up to 60 gallons of water at a time and has the capacity to accommodate 110 dairy cattle.

• 24" drinking height
• Measures 36” x 80” x 24” (L x W x H)
• Weighs 205 lbs.
• Holds up to 60 gallons
• Capacity: 110 dairy cattle
• 3” drain hole with rubber plug for rapid cleaning
• Stainless steel anchor bolts included
• Heat: Optional 110V or 220V 500-watt submersible heater

Manufacturer's Part Number: A6100

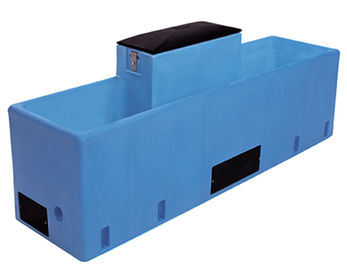

BigSpring A6200

Tough, high impact resistant Rockite construction allows the BigSpring A6200 to withstand the toughest of livestock abuse. Three access panels and no wrenches are required for valve compartment access, making maintenance and adjustments flow smoothly. The sloped bottom design makes for easy cleaning. It holds up to 60 gallons of water at a time and has the capacity to accommodate either 200 head of beef or 100 dairy cattle.

• 22" drinking height
• Measures 22” x 84” x 22” (L x W x H)
• Weighs 170 lbs.
• Holds up to 60 gallons
• Capacity: 200 head of beef or 100 dairy cattle
• Designed for free stall barns
• Two large 3” drains; severe slope for quick draining
• Stainless steel anchor bolts included
• Heat: Optional 110V or 220V 500-watt submersible heater

Manufacturer's Part Number: A6200

BigSpring A6300

Holding up to 110 gallons of water at a time, the BigSpring A6300 has the capacity to accommodate either 300 head of beef or 150 dairy cattle. The tough, high impact resistant Rockite construction allows it to withstand the toughest of livestock abuse. Three access panels and no wrenches are required for valve compartment access, making maintenance and adjustments a breeze. The sloped bottom design makes for easy cleaning.

• 22" drinking height
• Measures 22” x 144” x 22” (L x W x H)
• Weighs 275 lbs.
• Holds up to 110 gallons
• Capacity: 300 head of beef or 150 dairy cattle
• Designed for free stall barns
• Two large 3” drains; severe slope for quick draining
• Stainless steel anchor bolts included
• Heat: Optional 110V or 220V 500-watt submersible heater

Manufacturer's Part Number: A6300

BigSpring A6400

The BigSpring A6400 is tough enough to withstand your cattle with its Rockite construction and has the holding capacity to hydrate them. This waterer holds up to 90 gallons of water and has the capacity to accommodate either 250 head of beef or 125 dairy cattle. The three access panels allow access to the valve compartment and no wrenches are required. The sloped bottom design makes for an easy cleaning and maintenance experience.

• 22" drinking height
• Measures 22” x 120” x 22” (L x W x H)
• Weighs 230 lbs.
• Holds up to 90 gallons
• Capacity: 250 head of beef or 125 dairy cattle
• Designed for free stall barns
• Two large 3” drains; severe slope for quick draining
• Stainless steel anchor bolts included
• Heat: Optional 110V or 220V 500-watt submersible heater

Manufacturer's Part Number: A6400

MiraFount A3390

The energy free MiraFount A3390 two-hole livestock watering tank holds up to 44 gallons. It can be used as both a thermos and a watering hole for your livestock. This particular tank can water 150 head of beef cattle or 60 dairy cows. Includes stainless steel anchor bolts and 2 easily removable top end panels.

• 20" drinking height
• Measures 29” x 43” x 20” (L x W x H)
• Capacity: 150 head beef or 60 head dairy
• Two 10” openings / 10.75” ball closures
• Holds up to 44 gallons
• Stainless steel anchor bolts included
• Weighs 126 lbs.

Manufacturer's Part Number: A3390

E-Fount A3390E

The E-Fount A3390E two-hole livestock waterer holds up to 44 gallons and comes with an energy efficient 75-watt heat element to weather the cold. The Two-Hole E-Fount can be used as both a watering hole and a thermos for your livestock. This particular waterer can hydrate 150 head of beef cattle or 60 dairy cows. Includes stainless steel anchor bolts and 2 easily removable top end panels.

• 20" drinking height
• Measures 29” x 43” x 20” (L x W x H)
• Capacity: 150 head beef or 60 head dairy
• Two 10” openings / 10.75” ball closures
• Holds up to 44 gallons
• Stainless steel anchor bolts and 75-watt heat element included
• Weighs 129 lbs.

Manufacturer's Part Number: A3390E

MiraFount A3330

The MiraFount A3330 one-hole livestock watering tank requires no electricity, so it saves 100% of your energy costs. Frame and cover are made of high impact Rockite. Each model comes with anchors for mounting to concrete pad, pipe insulation and a section of 3/4" PVC pipe.

• 14" drinking height
• Measures 28” x 26” x 16” (L x W x H)
• Capacity: 50 head beef, 30 horses or 25 head dairy
• One 8.75” opening / 9” ball closure
• Holds up to 15 gallons
• Stainless steel anchor bolts included
• Weighs 59 lbs.

Manufacturer's Part Number: A3330

E-Fount A3330E

The E-Fount A3330E one-hole livestock waterer is the economical choice for those in need of an electric heat waterer. The included 75-Watt heat element only requires 4 kilowatts of electricity during a week of -25 F temperatures and the high impact Rockite cover is sure to stand up to even the toughest of weather conditions. Each model comes with anchors for mounting to concrete pad, pipe insulation and a section of 3/4" PVC pipe.

• 14" drinking height
• Measures 28” x 26” x 16” (L x W x H)
• Capacity: 50 head beef, 30 horses or 25 head dairy
• One 8.75” opening / 9” ball closure
• Holds up to 15 gallons
• Stainless steel anchor bolts and 75-watt heat element included
• Weighs 59 lbs.

Manufacturer's Part Number: A3330E

MiraFount A3465

The MiraFount A3465 two-hole livestock watering tank saves you on energy costs by requiring zero electricity to operate. Each model comes with anchors for mounting to a concrete pad, pipe insulation and a section of 3/4" PVC pipe. The removable dome allows for quick and easy access to the valve area making any needed adjustment seamless for you.

• 18" drinking height
• Measures 24” x 36” x 18” (L x W x H)
• Capacity: 100 head beef or 40 head dairy
• Two 9.25” openings / 10” ball closures
• Holds up to 20 gallons
• Stainless steel anchor bolts included
• Weighs 79 lbs.

Manufacturer's Part Number: A3465

E-Fount A3465E

The E-Fount A3465E two-hole livestock waterer efficiently withstands freezing temperatures with the included 75-watt heating element and thermostat. Each model comes with anchors for mounting to a concrete pad, pipe insulation and a section of 3/4" PVC pipe. The removable dome allows for quick and easy access to the valve area making any needed adjustment seamless for you.

• 18" drinking height
• Measures 24” x 36” x 18” (L x W x H)
• Capacity: 100 head beef or 40 head dairy
• Two 9.25” openings / 10” ball closures
• Holds up to 20 gallons
• Stainless steel anchor bolts included
• Weighs 79 lbs.

Manufacturer's Part Number: A3465E

MiraFount A3345

The MiraFount A3345 one-hole livestock watering tank provides for 75 head of beef cattle or 30 head of dairy cattle. It’s sturdy frame and build are designed for the toughest of outdoor conditions. The removable top saves you time and effort when making any necessary adjustments.

• 18" drinking height
• Measures 31” x 29” x 18” (L x W x H)
• Capacity: 75 head beef or 30 head dairy
• One 10” opening / 10.75” ball closure
• Holds up to 30 gallons
• Weighs 95 lbs.
• Stainless steel anchor bolts included

Manufacturer's Part Number: A3345

E-Fount A3345E

The energy efficient E-Fount A3345E one-hole livestock waterer provides for 75 head of beef cattle or 30 head of dairy cattle. It’s sturdy frame and build are designed for the toughest of outdoor conditions and the included 75-watt heating element keeps winter at bay. The removable top saves you time and effort when making any necessary adjustments.

• 18" drinking height
• Measures 31” x 29” x 18” (L x W x H)
• Capacity: 75 head beef or 30 head dairy
• One 10” opening / 10.75” ball closure
• Holds up to 30 gallons
• Weighs 95 lbs.
• Stainless steel anchor bolts and 75-watt heat element included

Manufacturer's Part Number: A3345E

MiraFount A3354-S

The MiraFount A3354-S four-hole livestock watering tank can hold up to 70 gallons of fresh water to accommodate your cattle. No electricity is required, saving you money on energy costs. Top panels can be easily removed to help get new cattle started faster or to provide more capacity for a few extra head.

• 19" drinking height
• Measures 32.5” x 57.5” x 19” (L x W x H)
• Capacity: 200 head beef or 90 head dairy
• Four 9.5” openings / 10.75” ball closures
• Weighs 152 lbs.
• Holds up to 70 gallons
• Stainless steel anchor bolts included

Manufacturer's Part Number: A3354-S

MiraFount A3340

The MiraFount A3340 four-hole livestock watering tank is designed specifically for sheep. It holds up to 15 gallons and can provide for 100 head of sheep. The frame and cover are made of high impact Rockite to withstand the baaadest conditions.

• Measures 26” x 28” x 14” (L x W x H)
• Weighs 57 lbs.
• Capacity: 100 head sheep
• Four 6” openings / 7” ball closures
• Holds up to 15 gallons
• Stainless steel anchor bolts included

Manufacturer's Part Number: A3340

E-Fount A3340E

The E-Fount A3340E four-hole livestock waterer is designed specifically for sheep. It holds up to 15 gallons and can provide for 100 head of sheep. The frame and cover are made of high impact Rockite to withstand the baaadest conditions. Comes packaged with a 75-watt heating element that keeps the water liquefied in below freezing conditions.

• Measures 26” x 28” x 14” (L x W x H)
• Weighs 57 lbs.
• Capacity: 100 head sheep
• Four 6” openings / 7” ball closures
• Holds up to 15 gallons
• Stainless steel anchor bolts and 75-watt heat element included

Manufacturer's Part Number: A3340E

MiraFount A3410

The MiraFount A3410 two-lid livestock watering tank has a low drinking height specifically designed for hogs. It’s patented underside lid seal enables energy-free watering and has a valve area that can be easily accessed. Drain holes come with rubber plugs that allow for easy cleaning.

• Measures 19” x 34” x 16” (L x W x H)
• Capacity: 100 market hogs or 50 sows
• Two lift-up lids / 10” openings
• Holds up to 6 gallons
• Weighs 52 lbs.
• Stainless steel anchor bolts included

Manufacturer's Part Number: A3410

E-Fount A3410E

The E-Fount A3410E two-lid swine waterer has a low drinking height specifically designed for hogs. Cool water helps to relieve heat stress on hot days and the included 75-watt heating element prevents the water from freezing on the cold ones. It’s patented underside lid seal enables energy-free watering and has a valve area that can be easily accessed. Drain holes come with rubber plugs that allow for easy cleaning.

• Measures 19” x 34” x 16” (L x W x H)
• Capacity: 100 market hogs or 50 sows
• Two lift-up lids / 10” openings
• Holds up to 6 gallons
• Weighs 57 lbs.
• Stainless steel anchor bolts and 75-watt heating element included

Manufacturer's Part Number: A3410E
